Embedded Solutions

VC mission is offering the customers the best solution possible. This principle is basic to all our developments and enables us to guarantee optimal performance with our SMART CAMERAS.

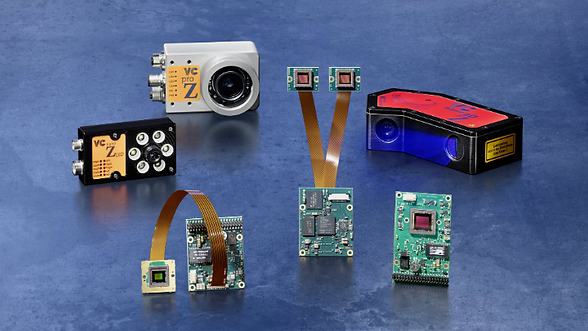

During the recent years, our EMBEDDED VISION PORTFOLIO has been growing enormously along with our customers' demands. Our STANDARD MODELS are designed for a broad range of inspection tasks and find their use in many application areas around the world. Of course, being a reliable OEM partner, we also offer INDIVIDUAL SOLUTIONS for specific applications.

VC Board Level Cameras
ARM / LINUX

VC Embedded Systems with ARM technology and VC LINUX operating system!

Intelligent Board Level Cameras for OEM Applications

Basis for the ARM-based board cameras of the VCSBC nano Z series is the ZYNQ® module, a Dual Core ARM CortexTM-A9 module with 2 x 866 MHz and integrated FPGA from Xilinx®.

As with all VC Smart Cameras, these processors provide the necessary computing capacity to achieve VC standards: Extreme high-speed in real-time.

The ARM/Linux Smart Cameras are ideally suited for use in industry, but, of course, also for other applications.

The operating system VC Linux takes care of hard- and software interaction. And, last but not least, the Z models provide a special feature: On request, the FPGA CAN BE PROGRAMMED to achieve a considerable speed boost. With that, the image processing can be executed up to twenty times faster than without FPGA support.

Board Level Cameras with freely programmable FPGA

The ARM-based board camera series follow the proved and tested quality of Vision Components: Thanks to the engaged processors the small power packs provide for top performance. The VCSBC nano Z series Smart Cameras come with a Dual Core Cortex-A9 .

Like all VC Smart Camera models sensors from well-known manufacturers are included.

As an extra feature of VC Z series, the FPGA module, Xilinx's ZYNQ SoC, is FREELY PROGRAMMABLE and thus able to boost the system's performance ernormously. This service is especially addressed to our OEM customers and guarantees for maximizing the hardware performance.

Board cameras VCSBC nano Z

Setting new standards with freely programmable FPGA

VCSBCnano Z 0010



1/4" CMOS sensor on-board Teledyne e2v

736 x 480 pixel WVGA

134 fps

available as color version,

with remote sensor board or as stereo camera

VCSBCnano Z 0011



1/1.8" CMOS sensor on-board, Teledyne e2v

1280 x 1024 pixel, SXGA

63 fps



available as color version,

with remote sensor board or as stereo camera

VCSBCnano Z 0015

1/1.8" CMOS sensor on-board, Teledyne e2v

1600 x 1200 pixel, UXGA

55 fps



available as color version,

with remote sensor board or as stereo camera

VCSBCnano Z 0252



1/1.8" CMOS sensor on-board,

SONY 2048 x 1536 pixel, UXGA

88 fps



available as color version,

with remote sensor board or as stereo camera

VCSBCnano Z 0273



1/2.9" CMOS sensor on-board, SONY

1440 x 1080 pixel

174 fps



available as color version,

with remote sensor board or as stereo camera

VCSBCnano Z 0392

1/2.3" CMOS sensor on-board, SONY

1920 x 1200 pixel

118 fps



available as color version,

with remote sensor board or as stereo camera

Board cameras VCSBC nano Z-RH

Flexible to integrate anywhere

VCSBCnano Z-RH 0010



1/4" CMOS remote sensor, Teledyne e2v

736 x 480 pixel, WVGA

134 fps



available as color version,

with sensor on-board or as stereo camera

VCSBCnano Z-RH 0011

1/1.8" CMOS sensor on-board, Teledyne e2v

1280 x 1024 pixel, SXGA

63 fps



available as color version,

with sensor on-board or as stereo camera

VCSBCnano Z-RH 0015

1/1.8" CMOS sensor on-board, Teledyne e2v

1600 x 1200 pixel, UXGA

55 fps



available as color version,

with remote sensor board or as stereo camera

VCSBCnano Z-RH 0252



1/1.8" CMOS sensor on-board,

SONY 2048 x 1536 pixel, UXGA

88 fps



available as color version,

with sensor on-board or as stereo camera

VCSBCnano Z-RH 0273



1/2.9" CMOS sensor on-board, SONY

1440 x 1080 pixel

174 fps



available as color version,

with sensor on-board or as stereo camera

VCSBCnano Z-RH 0392

1/2.3" CMOS sensor on-board, SONY

1920 x 1200 pixel

118 fps



available as color version,

with sensor on-board or as stereo camera

VCSBCnano Z-RH 0012



1/2.5" CMOS remote sensor, ON Semi

2592 x 1944 pixel

11 fps



also available as color camera

Board cameras VCSBC nano Z-RH-2

Stereo Vision with FPGA Power!

VCSBCnano Z-RH-2 0010



1/4" CMOS sensor on-board Teledyne e2v

736 x 480 pixel WVGA

134 fps

available as color version,

with single sensor board or sensor on-board

VCSBCnano Z-RH-2 0011



1/1.8" CMOS sensor on-board, Teledyne e2v

1280 x 1024 pixel, SXGA

63 fps



available as color version,

with single sensor board or sensor on-board

VCSBCnano Z-RH-2 0015

1/1.8" CMOS sensor on-board, Teledyne e2v

1600 x 1200 pixel, UXGA

55 fps



available as color version,

with single sensor board or sensor on-board

VCSBCnano Z-RH-2 0252



1/1.8" CMOS sensor on-board,

SONY 2048 x 1536 pixel, UXGA

88 fps



available as color version,

with single sensor board or sensor on-board

VCSBCnano Z-RH-2 0273



1/2.9" CMOS sensor on-board, SONY

1440 x 1080 pixel

174 fps



available as color version,

with single sensor board or sensor on-board

VCSBCnano Z-RH-2 0392

1/2.3" CMOS sensor on-board, SONY

1920 x 1200 pixel

118 fps



available as color version,

with single sensor board or sensor on-board

Click here for hardware manual

Online hardware manual VCSBC nano Z

VCQ-Board

Upgrade your IP cam: Q-Board turns IP cameras into smart cameras for ITS applications

The new VC Q-Board is a "System on Module" which can be used flexibly for any application - even without sensors.

Equipped with several standard interfaces, the Q-Board provides for ideal and fast communication. Already installed IP camera systems can be transformed into Smart Systems, for example. The integrated freely programmable SoC from Xilinx provides for that.

Your advantages at a glance

  • robust, designed for industrial use

  • designed for Embedded Vision

  • interfaces: serial RS232, Gigabit Ethernet, dig. I/Os, I2C

  • Linux operating system

  • VCLib with more than 300 functions

  • extremely compact: 40 x 50 mm

  • every VC sensor can be connected

  • freely programmable

  • Xilinx Zynq Dual-Core Cortex-A9 ARM 2x866 MHz incl. FPGA
