i3 System Detectors

Rising Star in the design, the manufacture of the thermal imaging detector and the X-ray detector.



Screen Shot 2020-09-17 at 2.45.31 PM.png

Uncooled Infrared Detectors

DB1024-12C-A

Detector type:  MicroBolometer (uncooled)

Array format: 1024 x 768

Pixel pitch: 12㎛

Thermal sensitivity (NETD): ≤ 45mk or ≤ 50mk @ F/1, 300K, 30Hz

Operability: ≥ 99%

Frame rate: Max 30Hz

Video output: 2ch

Thermal time constant: ≤ 15ms

Operating temperature: -40°C ~ 65°C

Wavelength band: LWIR(8 ~ 14 µm)

Dimensions: 24(W) x 24(H) x 3.6(D) mm³ (without pin)

Weight: ≤ 7g

Windowing: Windowing capability

Screen Shot 2020-09-17 at 3.18.50 PM.png
Bolometer_1024x768 12um LWIR infrared Video [near the company 2]

Bolometer_1024x768 12um LWIR infrared Video [near the company 2]

Play Video
Screen Shot 2020-09-17 at 3.29.10 PM.png
Screen Shot 2020-09-17 at 3.29.17 PM.png
Screen Shot 2020-09-17 at 3.29.23 PM.png
Screen Shot 2020-09-17 at 3.29.30 PM.png
Screen Shot 2020-09-17 at 3.29.36 PM.png

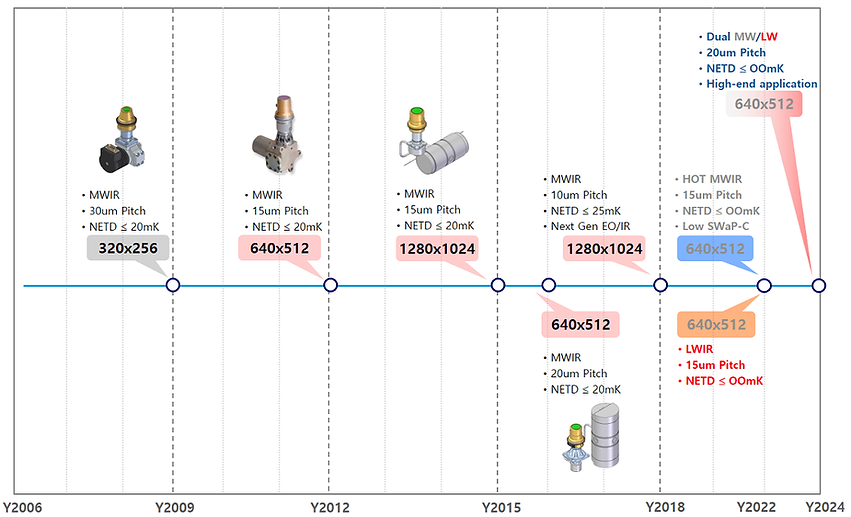

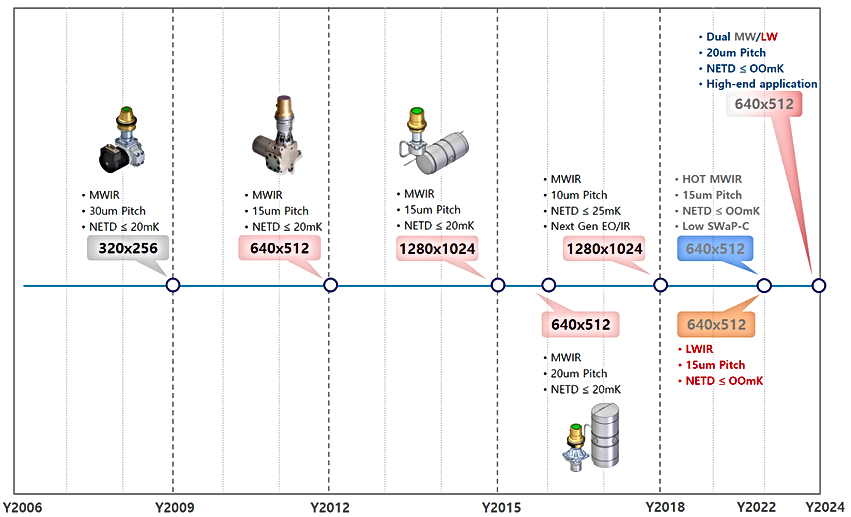

Roadmap


Cooled Infrared Detectors

DI1280-10M

Detector type:  InSb

Array format: 1280 x 1024

Pixel pitch: 10㎛

Thermal sensitivity (NETD): ≤ 25mk

Frame rate: Max 100Hz Full frame

Thermal time constant: ≤ 15ms

Operating temperature: - 40°C ~ 71°C

Wavelength band: MWIR(3 ~ 5µm)

Read-Out: IWR
Cooltime: 7 min

Environmental conditions: MIL-STD-810
